SquarePlug SPXA-FBK Low-Profile 90° Heavy-Duty 3-Pin Female XLR Connector
SquarePlug SPXA-FBK Low-Profile 90° Heavy-Duty 3-Pin Female XLR Connector — Black
The SquarePlug SPXA-FBK is a compact, professional-grade right-angle female XLR connector built for demanding audio applications where space, durability, and clean cable routing are critical. It delivers the same heavy-duty construction found across the SquarePlug XLR line, packaged in a low-profile 90° design that’s significantly shorter than traditional XLR connectors.
Designed for real-world use on stage, in studios, racks, broadcast rigs, and portable systems, the SPXA-FBK features SquarePlug’s proprietary cable clamping system. This chuck-style strain relief provides secure mechanical support for cables ranging from 2.5 mm to 6.5 mm OD, keeping solder joints stress-free even in high-movement environments.
A key advantage of the SPXA series is its radial cable exit flexibility. The connector can be assembled with the cable exiting in eight different directions (every 45°), allowing precise routing in tight pedalboard I/O panels, stage boxes, portable IEM rigs, and rack-mounted interfaces.

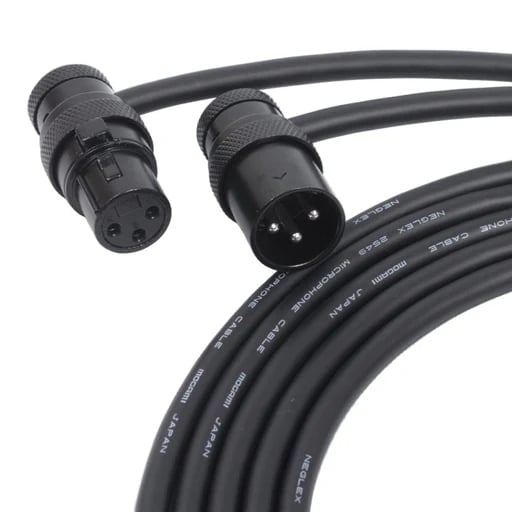

This is the female counterpart to the SPXA-MBK and pairs perfectly when you need a compact, rugged XLR solution without sacrificing serviceability.
Matching Connector
Recommended Cable Pairing
- Mogami W2552 Superflexible Microphone / Balanced / TRS Cable — excellent diameter range, flexibility, and noise performance
Why the SquarePlug SPXA-FBK?
- Low-profile 90° angled female XLR design
- Up to ~25–30% shorter than standard XLR connectors
- Heavy-duty, all-metal construction
- Chuck-type strain relief for high pull-out resistance
- Supports cables from 2.5 mm to 6.5 mm OD
- Eight selectable cable exit angles (45° increments)
- Knurled shoulders for secure grip during handling
Specifications
- Connector type: 3-pin female XLR, right-angle
- Shell diameter: approx. 0.86" (22 mm)
- Shell length: approx. 1.69" (43 mm)
- Protrusion when connected: approx. 1.14" (29 mm)
- Cable OD range: 2.5 mm – 6.5 mm
- Strain relief: Yes
- Finish: Black
- Solder tabs: 3
