Neutrik powerCON Blue (Power In) Panel Mount Port

$5.00

Neutrik NAC3MPXXA powerCON Chassis Connector — Power In (Blue)


The Neutrik NAC3MPXXA is a professional-grade panel-mount powerCON XX power inlet built for safe, rock-solid mains power connections in pedalboards, racks, stage boxes, and custom enclosures. This is the Power In (blue) version, keyed specifically to prevent accidental inter-mating with power-out connectors.


Unlike standard IEC inlets, the powerCON system uses a twist-lock latching mechanism that physically locks the connector in place—no accidental unplugging on stage, in a rack drawer, or during transport. It’s one of the best upgrades you can make for any rig that needs reliable AC input.


The NAC3MPXXA features 3/16" flat tab terminals, making it ideal for clean internal wiring using crimp connectors or insulated quick-disconnects. It’s also a connector with breaking capacity (CBC), meaning it can be connected or disconnected under load.


Bonus: it’s compliant with modern safety standards including IEC 62368-1, so it’s a solid choice for professional audio, broadcast, and commercial builds.


Key Features

  • Panel-mount chassis powerCON XX connector
  • Power In version (blue) — keyed to prevent mismatching
  • Secure twist-lock latching system
  • 3/16" flat tab terminals for fast, clean internal wiring
  • Connector with breaking capacity (connect/disconnect under load)
  • Extremely robust, tour-grade construction

Why Use powerCON Instead of IEC?

  • Locks in place — no accidental power loss
  • Designed for repeated connect/disconnect cycles
  • Higher current ratings than standard IEC connectors
  • Industry standard for professional audio and stage gear

Common Applications

  • Pedalboard power inlet panels
  • Rack power distribution
  • Portable IEM and monitor rigs
  • Custom audio enclosures and stage boxes

Specifications (Manufacturer)

  • Model: NAC3MPXXA
  • Connector type: Male chassis mount powerCON XX
  • Function: Power In (blue)
  • Contacts: 2 + Protective Earth (PE)
  • Flat tabs: 3/16"
  • Rated current (EU): 16 A @ 250 V AC (EN 60320-1)
  • Rated current (US): 20 A @ 127 V AC (UL 60320-1)
  • Contact resistance: ≤ 2 mΩ
  • Protection class: IP20
  • Temperature range: −30 °C to +80 °C
  • Flammability rating: UL94 V-0

Compatible StompDocs Pedalboard Patch Panels

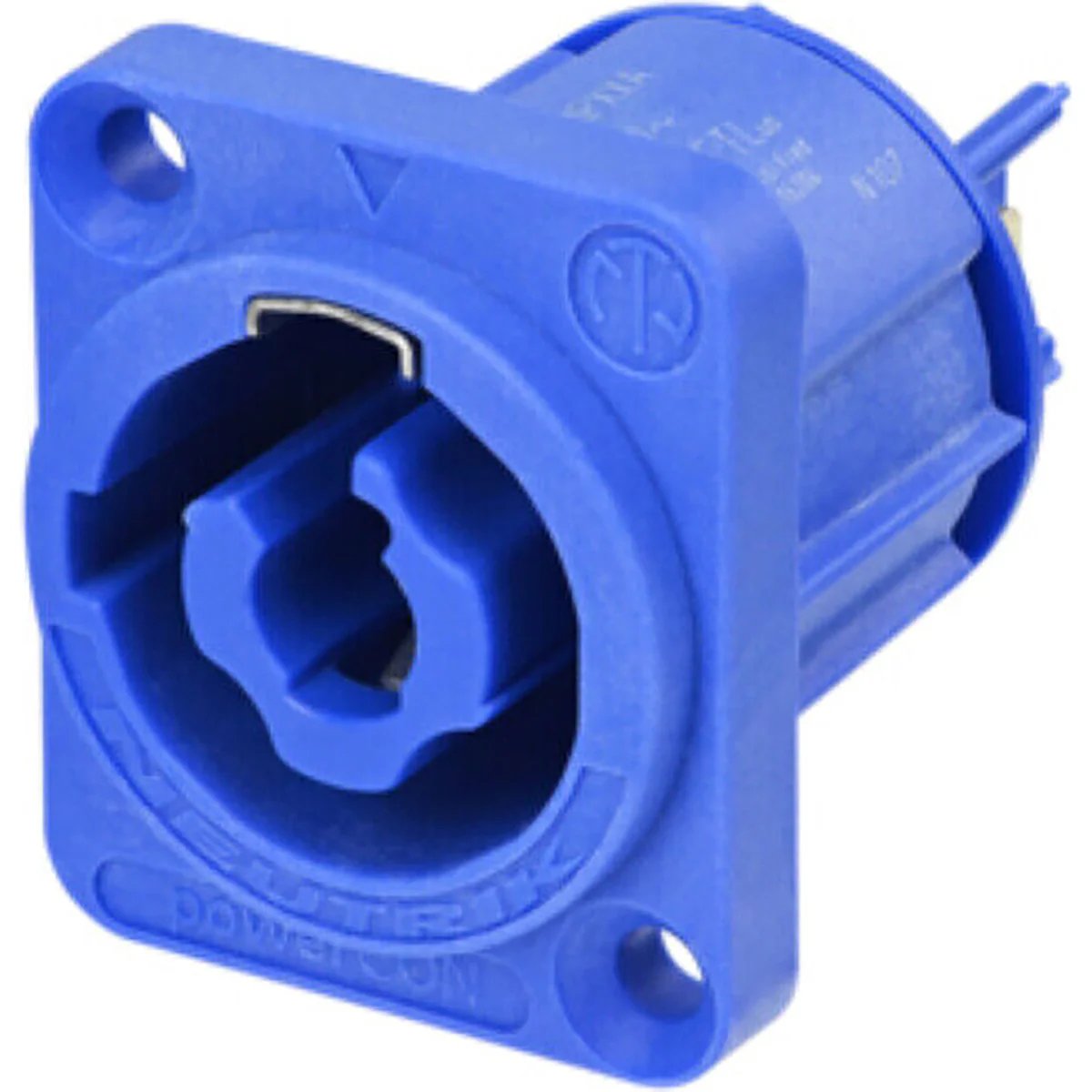

Image 1 of Neutrik powerCON Blue (Power In) Panel Mount Port

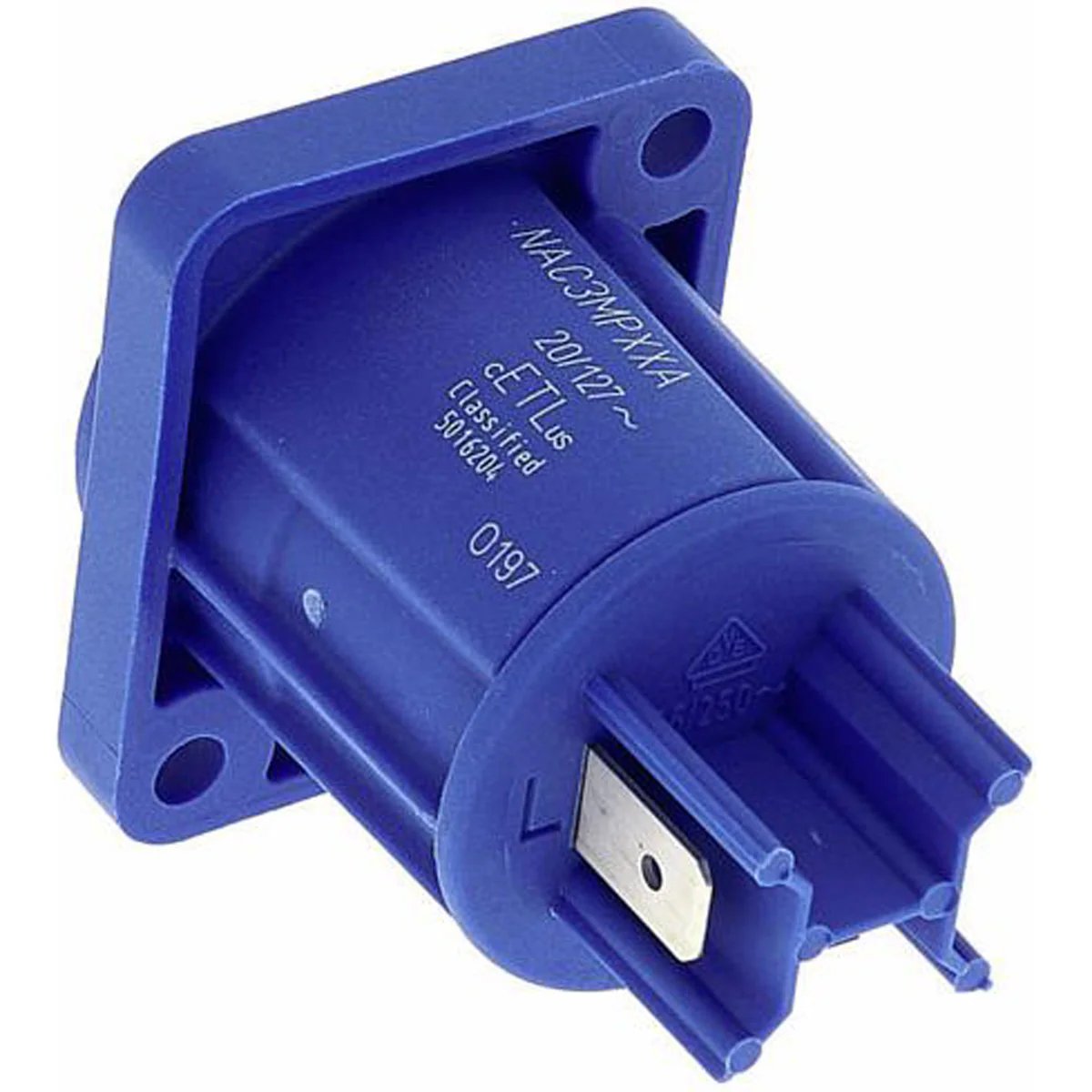

Image 2 of Neutrik powerCON Blue (Power In) Panel Mount Port
