SquarePlug Straight TRS Bal/Stereo 1/4" Plug

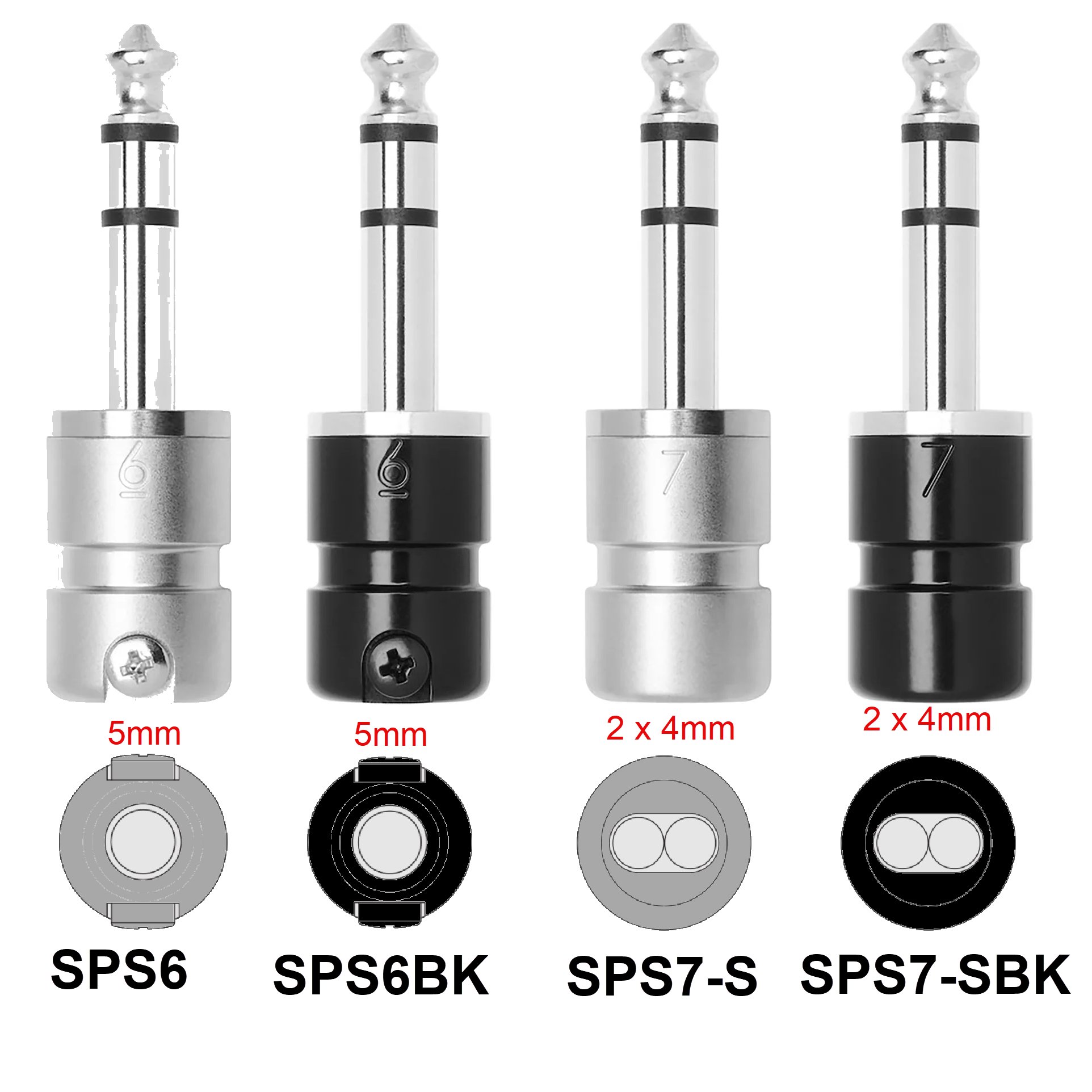

Designed for builders who need the world's smallest 1/4" straight TRS connector, the SquarePlug SPS series offers unmatched strain relief, EMI protection, and a super low-profile design that enables the highest packing density on pedalboards and in rack systems. Available in both balanced/stereo and dual-mono configurations, these connectors handle a wide range of professional audio applications.

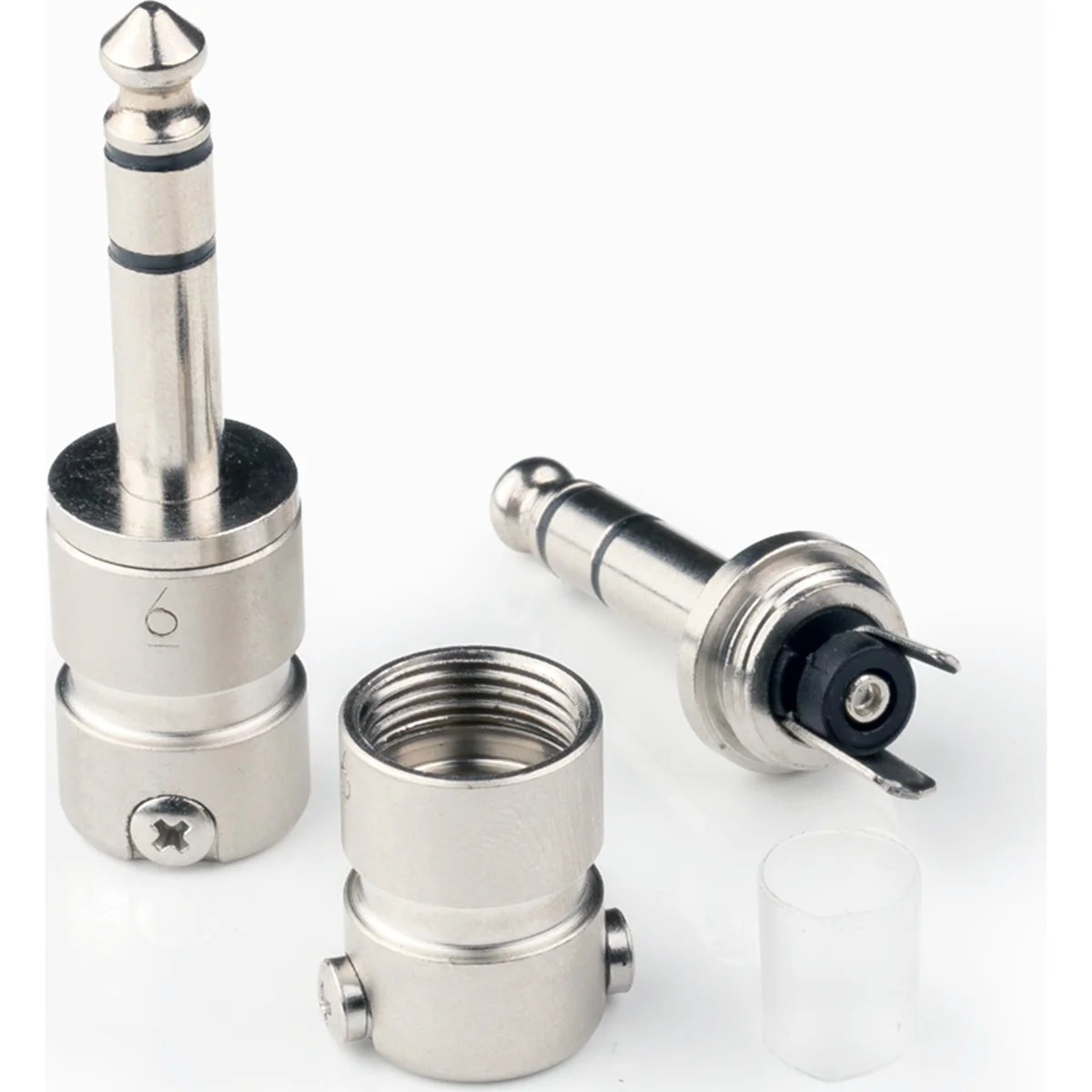

The SPS6-S is SquarePlug's straight TRS plug for balanced/stereo applications, similar in design to its SPS4/5 TS counterparts but optimized for larger balanced cables. It can accommodate balanced cables with an outer diameter up to 6.3mm and pairs perfectly with SquarePlug's short body XLR plugs for 1/4" TRS to XLR cable assemblies. The SPS6-S is the shortest solder-type 1/4" connector that features strain relief, protruding by only 31mm when plugged in with an outer diameter of 13mm (just under 14mm around the screw heads area).

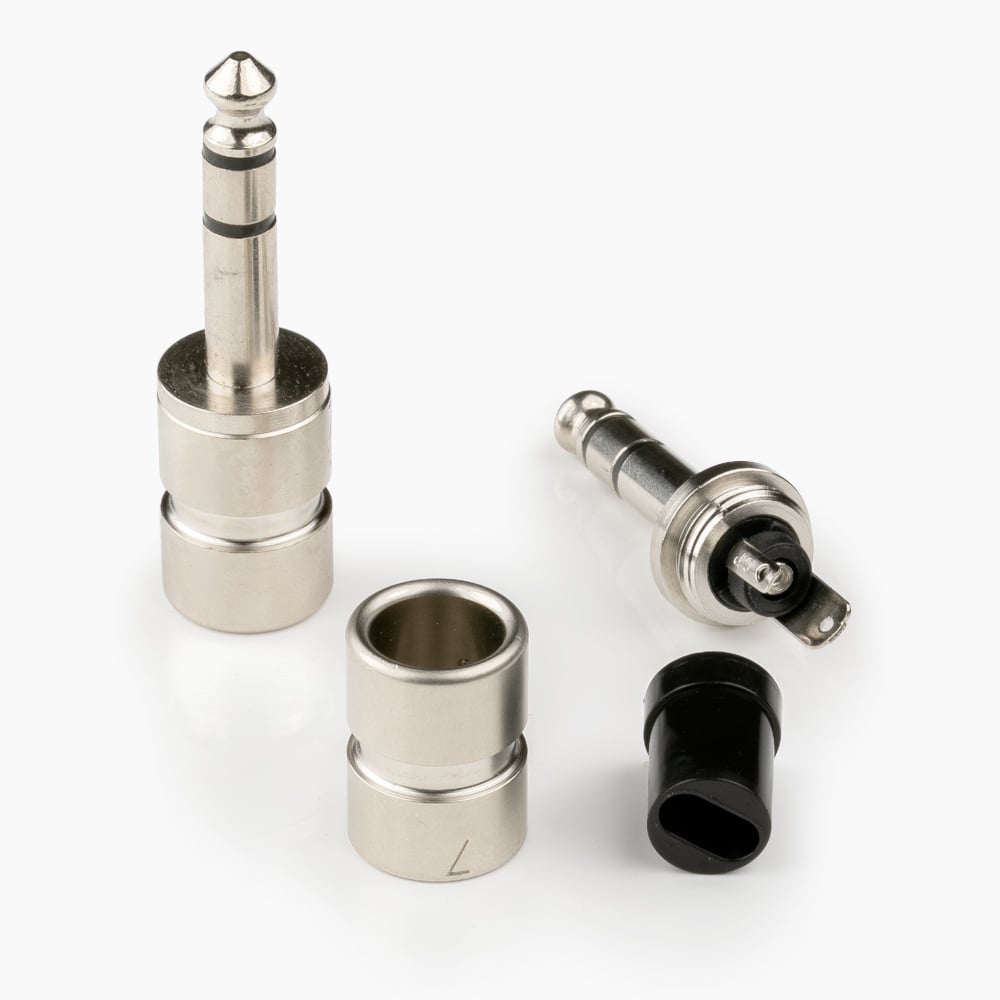

The SPS7-S was specifically engineered for Y or insert cable assemblies and dual-mono applications, featuring a patented oblong clamping system that provides effective strain relief while maintaining cables parallel to each other. This prevents stress build-up on solder joints caused by cables folding or twisting on one another—a common failure point in dual-mono cable assemblies. These connectors are ideal for creating insert cables, making them perfect for pedal switchers like the RJM PBC or stereo pedals like the Strymon Timeline.

At the heart of both models is SquarePlug's improved strain relief design, which prevents both axial and lateral cable movements, keeping solder joints completely stress-free. The SPS6-S features a unique 2-screw cable clamping mechanism that doubles as a discreet yet effective cable identification system. With 2 screws per connector and 10 different colors available, 55 distinct combinations can be built for easy cable tracing and organization.

Both connectors feature solder tabs for tip, ring, and sleeve connections, enabling quick and easy soldering and de-soldering. An insulation tube prevents shorting, while the signature ring groove allows for effortlessly plugging in and out. The serviceable, heavy-duty all-metal construction with no plastic parts ensures long-term reliability.

Both models are available in black or matte nickel finish (body, cover, and screws), providing a professional appearance that matches other SquarePlug connectors. The matte nickel finish matches other SquarePlug silver-finished connectors like the SP650-S right-angle plug and SPS4/5 straight plugs.

Recommended Cable Pairing:

For balanced/stereo applications, the SPS6-S is optimized for cables with outer diameters from 5.0mm to 6.3mm and works exceptionally well with Mogami W2534, Mogami W2549, Mogami W2792, Canare L-2T2S, or Canare L-4E6S. This pairing provides excellent strain relief, reliable solder joints, and maintains signal integrity in balanced audio applications.

For dual-mono applications, the SPS7-S is optimized for two cables with outer diameters of 3.0 mm to 4.0 mm each and works exceptionally well with Mogami W2528, dual Mogami W2314, or dual Canare GS-4. This pairing provides excellent strain relief, reliable solder joints, and maintains cable alignment in tight pedalboard layouts.

If you're building balanced patch cables, TRS to XLR assemblies, insert cables, Y cables, or need to connect audio interfaces, switching systems, stereo pedals, and switchers with the smallest possible footprint, the SquarePlug SPS series is a proven, professional solution backed by domestic and foreign patents.

Make: SquarePlug
Series: SPS (Super Low Profile Straight)
Connector type: 1/4" TRS (stereo/balanced or dual-mono)
Design: Super low-profile straight, world's smallest
Strain relief: Unique 2-screw cable clamping mechanism (SPS6-S) / Patented oblong clamping system (SPS7-S)
Shell dimensions (SPS6-S): Diameter 13 mm (0.51"), Length 31 mm when plugged in
Shell dimensions (SPS7-S): Diameter 15 mm (0.59"), Length 22.5 mm (0.88")
Cable OD compatibility (SPS6-S): 5.0 mm to 6.3 mm (single cable)
Cable OD compatibility (SPS7-S): Two cables, 3.0 mm to 4.0 mm each
Recommended cables (SPS6-S): Mogami W2534, Mogami W2549, Mogami W2792, Canare L-2T2S, Canare L-4E6S
Recommended cables (SPS7-S): Mogami W2528, dual Mogami W2314, dual Canare GS-4
Features: Solder tabs, insulation tube, serviceable, all-metal construction, color-coded screws (SPS6-S)
Finish: Black or matte nickel (body, cover, and screws)
Application: Balanced patch cables, TRS to XLR assemblies, audio interfaces, switching systems, rack systems, insert cables, Y cables, stereo pedals, pedal switchers, dual-mono TRS connections
